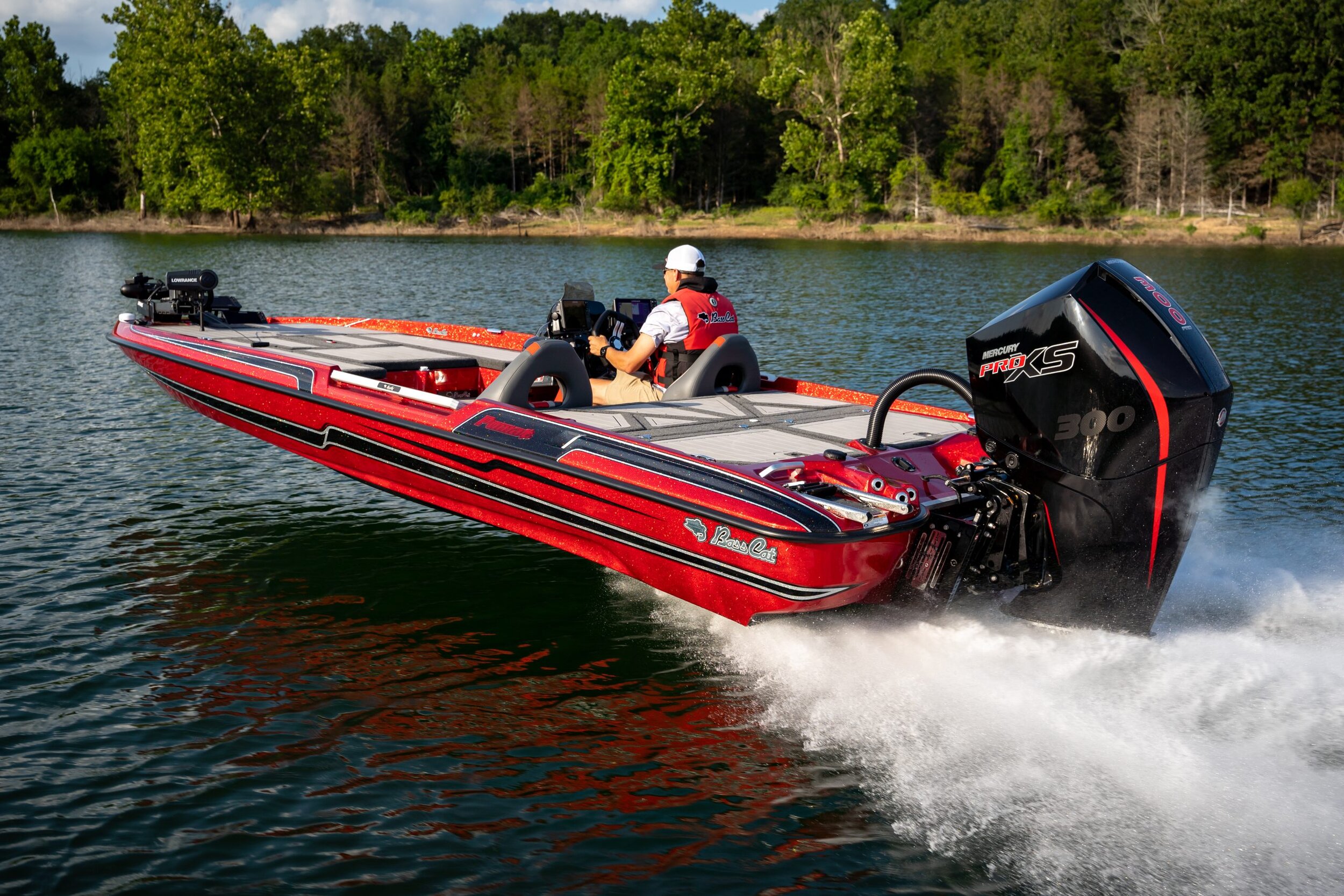

Bass Cat PUMA STS (20’7″) Same Name, Brand New Platform. MUST SEE!
The Puma name remains but everything about this model is completely new. The Puma STS (Project ‘Stealth’) began in 2018 when the original STS hull concept took off in the newly redesigned Jaguar STS. Overall length has increased to 20’7″ allowing the 96″ wide beam to carry forward without sacrificing the performance characteristics Bass Cat is recognized for. From our patent-pending beveled Reflex fitted decks option, to the all-new Soft Touch Series (STS) running surface, this boat is paving a new segment for Bass Cat that many will appreciate
SPECIFICATIONS
Length: 20’7″
Width: 96″
Approx. Boat Weight: 2100lbs
H.P. Rating: 200-300
Fuel Capacity: 60 Gal
Rod Box Length: (Port) 8’0″, (Starboard) 8’0″
Approximate Storage Length:
Engine trimmed down – 26’8″
Engine trimmed down, Tongue Swung – 23’11”
Wide, stable platform without sacrificing significant top end
Dry, soft ride thanks to the STS (Soft Touch Series) hull
Efficient front deck layout with offset lids and Reflex rod pads
1. Elevated graph mounting flats for direct gimbal placement
2. Adjustable pedal and seat locations
3. Integrated net storage flanked by central tackle storage
4. Reflex rod storage pads
5. Large BCB triangular livewells
6. Dual dedicated anchor pump access with removable storage trays
7. Dual removable fold-flat access doors
Strength & Performance
Vinyl Ester Resin on 60% – all outer laminate
Engine and OEM Matched Controls (non Verado)
100% All Fiberglass Hull Construction
60 Gallons of Fuel – 2 tanks @ 30 gal each
Minn Kota Fortrex 80 45″ 24V
Choice of Engine Matched 3 Blade Prop
Pump in and Pump out livewells
Slidemaster Jackplate
28 Ounce Carpet
Two Rod Boxes – One Organizer
Dip Net Scabbard
Tilt Hydraulic Steering
One (1) AGM Cranking Battery
High Performance 6X BCB Steering Wheel
Safety, Security & Electronics
Two (2) Helix 7 CHIRP GPS
Minn Kota 3 Bank Charger
Interactive Digital Switch Panel
Livewell Lights
Quicksilver Gauges – Tach, Speedo, Fuel & Trim
48V Test Gauge
Master Power (2) – At Dash and Crank Battery Breaker
Tinned Wire with 6-6 Gauge Buss Wire Strip to Console
Security System & Lighted boxes
Dual (2) 1000 GPH Bilges with Automatic
Lighted Aluminum Billet Hand Rails
Integrated Stainless Ladder
Battery Tender Trolling Motor Plug
Foam Filled Stringer System
Windscreen (choice – large or small)
Integrated Push Button Deck Lighting
Underwater Wake Light
Bass Cat Logo Puddle Light
Talos Lightning Detection
X-Mount Phone Holder
Custom & Comfort
One Fold Down & One Butt Seat w/ Pro Pole
Wave Crusher Seats
Bass Cat Logo in Livewell Lids
Recessed Trolling Motor Foot Pedal
18″ Measure Rule
Mooring Flip Cleats (2) at Consoles
Marine Town Stainless Steel Latches
Plano Tackle Trays ABS
Dual Plier Holder
Dual Rod Straps – Bass Cat
Passenger Rod Bungee
3- R & R Aluminum Battery Trays
Boat Ventilation System
USB Power Outlet
Reflex Rod Pads & Box Mat
Stainless Cup Holders
Two Fully Insulated Ice Chests
Dual Removable Rear Deck Lid
Fully Insulated Deck Lids
Anchor Pump Access Lids
Remote Drain Plug
Bass Cat Trailers
4″ C Channel frame – US Steel – Tandem
Five (5) Cross members
Welded to Fit Construction
Fiberglass Fenders
Dual Torqueflex Axles w/ Brakes Dual Axle
Dot 5 Brake Fluid
Fiberglass Step
Pivot Tongue
IMCO Tie Downs
15″ Aluminum Wheel (Rogue)
One PPG Clear Coat
LED Trailer Lights
XP Trailer Jack
Hand Brake
Stainless Steel Brake Lines
Bass Cat makes every effort to ensure accuracy of all information. Features, options and information subject to change at any time.
